Description
CNC lathe Traub TNC 42/65
Machine number 7041260
Rated voltage. 4000V,3-N,PE
Rated current 85 A
Maximum back-up fuse 80A
Rated power 49 KW
Connected load 39 kVA
Frequency 50 Hz
TECHNICAL DETAILS
Year of construction: 2010
Control: Traub TX 8i
Turning length: max. 450 mm
Machining diameter: max. 65 mm
Bar diameter: 65 mm
Y-axis (spindle1)
2 x C-axis
Bar loading magazine: Iemca Master 80 HF
Chip conveyor: Knoll
Spindle data
Spindle speed: max. 5,600 rpm
Spindle motor: 18.5 kW
Number of spindles: 2
Tool data
Number of tool stations on the turret head: 14x VDI30
Maximum speed of the turning tools: 8,000 rpm
Drive of the turning tools 100% / 15%: 1.5 / 4 kW
MACHINE DETAILS
Dimensions: 3,450 x 2,400 x 2,100 mm
Weight: 4,800 kg
Switch-on hours: 44,534 h
Spindle1: 32419h
Location Spessartstraße 7, 97903 Collenberg, DE
Spindle2: 26149h
Spindle3: 6343h
Spindle4: 1264h
EQUIPMENT

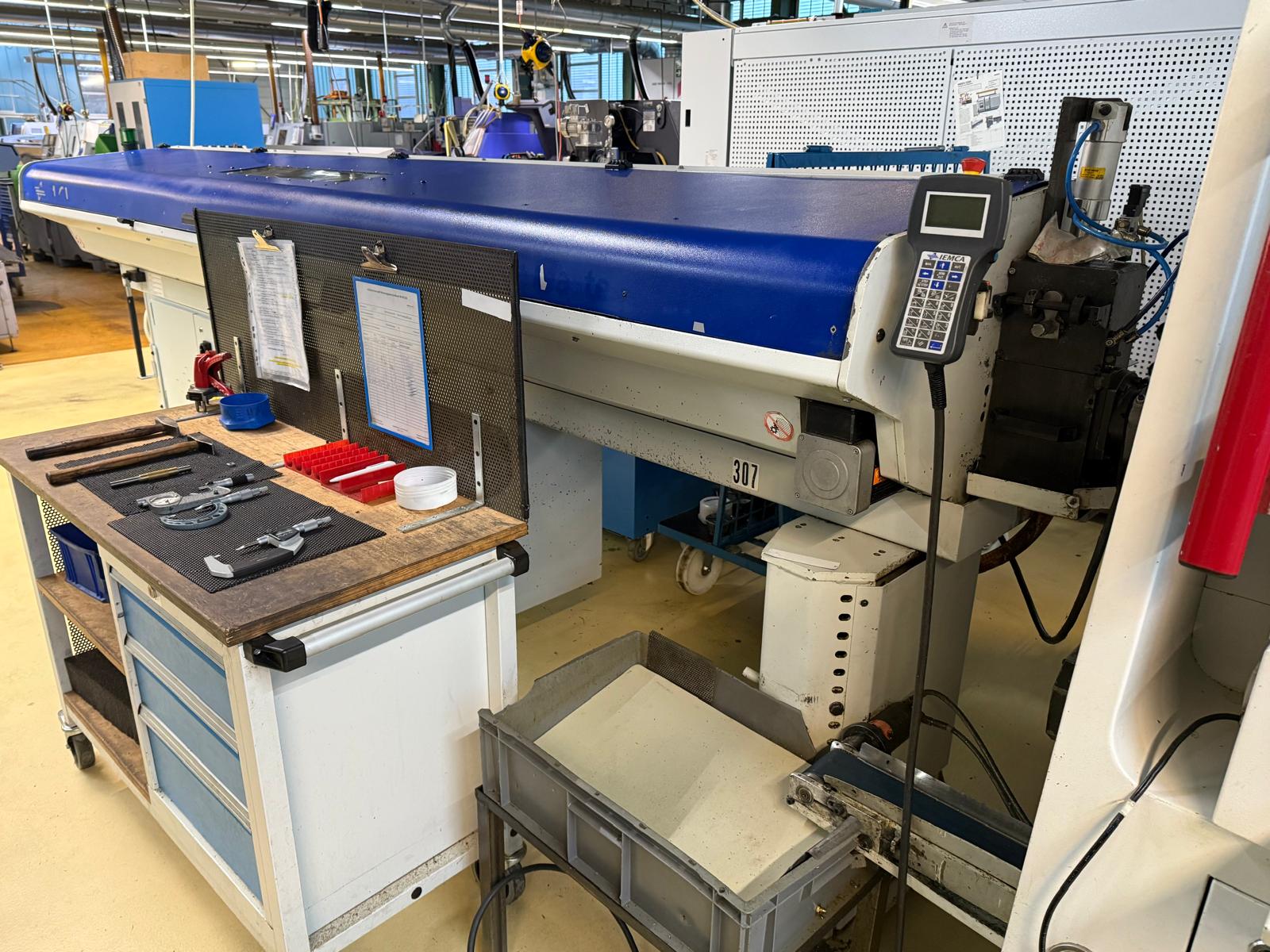

– Breuning IRCO ILS RBK 10012 bar feeder
– Parts collection system with belt conveyor
– Chip preparation with KNOLL belt filter system
– Chip conveyor
– HAINBUCH collets
– Tool holder (rigid and driven)
– Documentation
This offer is subject to change and non-binding. Subject to alterations, errors and prior sale.
